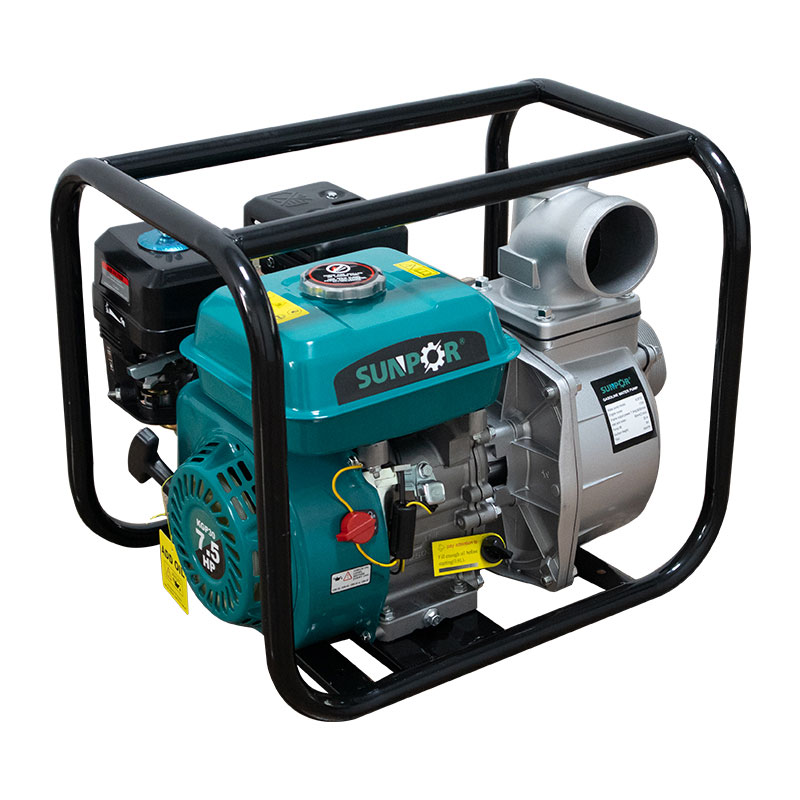

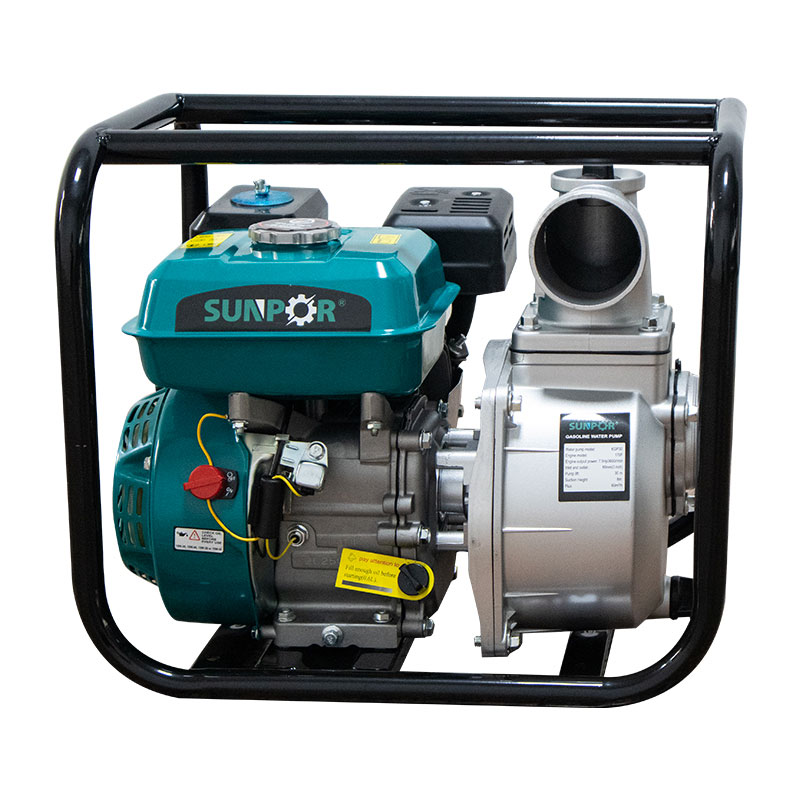

KGP20(2 inch)/KGP30(3 inch)/KGP40(4 inch)

FEATURE

New and upgraded, with strong power and stable performance

Strong suction, high lift, large flow, suitable for irrigation of

garden farmland, flood control and drainage, water delivery in high

mountains, etc

It is equipped with manual/electric starting modes, which is easy to

start and saves time and effort

High combustion efficiency, economic and environmental protection,

fuel saving and energy saving, high cost performance

High-strength thickened alloy pump body, not easy to rust, durable

MODEL 型号		KGP20(2 inch)	KGP30(3 inch)	KGP40(4 inch)
Suction port diameter 进水口	mm	50	80	100
Discharge port diameter 出水口	mm	50	80	100
Flow Capacity 流量	M/3	36	60	80
Total head lift 扬程	M	26	28	15
Suction Head 吸程	M	7	7	7
Engine 发动机		SP168F	SP168F	SP170
Engine Type 发动机款式		Air-cooled;4-stroke;OHV;single cylinder	Air-cooled;4-stroke;OHV;single cylinder	Air-cooled;4-stroke;OHV;single cylinder
Bore * Stroke 缸机*行程	MM	68*54	68*54	70*54
Displacement 排量	CC	196	196	210
Starting System 启动系统		Recoil 手启动	Recoil 手启动	Recoil 手启动
Engine Oil Capacity 机油容量	L	0.6	0.6	0.6
Fuel Capacity 燃油容量	L	3.6	3.6	3.6
Min. Fuel Consumption 燃油消耗	g/kw.h	≤360	≤360	≤360
Dimension(LxWxH) 尺寸	MM	477×395×410	500×395×445	500×395×445
Net Weight 重量	KG	26.5	28	30
